Probe Technical Data

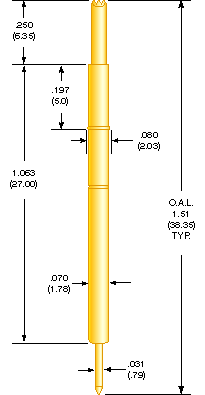

Mechanical
MINIMUM CENTERS: .100 (2.54)
FULL TRAVEL: .250 (6.35)
WORKING TRAVEL: .167 (4.24)
OPERATING LIFE: 1,000,000 cycles
Electrical
MAXIMUM CURRENT: 3 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
50 mOHMS mean
Material and Finishes
PLUNGER: Heat treated beryllium
copper, 24 Kt gold plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: Music wire, 24 Kt gold plated
over nickel
PIN: Heat treated beryllium
copper, 24 Kt gold plated over nickel
Spring Force +/- 20% oz. (grams)
| Spring Type |
Preload |
@ 2/3 Travel |
| Standard |
2.3 (65) |
5.5 (156) |
| -1 |
1.72 (49) |
4.01 (113) |
To Order
PROBE:
Select tip style as shown. |
