SERIES 35

Probe Technical Data
Mechanical
MINIMUM CENTERS:.035 (0.89)
FULL TRAVEL: .060 (1.5)
WORKING TRAVEL: .040 (1.0)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT: 1 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
50 mOHMS mean

Material and Finishes
PLUNGER: Steel
24 Kt gold plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: Music wire, 24 Kt gold plated
over nickel

Spring Force +/- 20% oz. (grams)

Spring Type	@ 2/3 Travel
Standard	2.8 (79.38)



Receptacle Technical Data
Barrel extends from the top the receptacle by
.020.

MOUNTING HOLE SIZE: .026 (.66)
diameter, # 71 (.65 mm) drill
WIRE GAUGE: 30 AWG
CONNECTIONS:

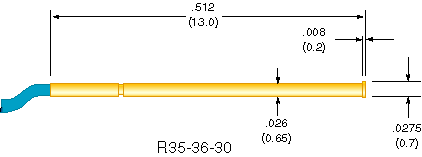

R35-36-30 Crimped with 36
inches of 30 AWG wire attached
(other lengths upon request)

Materials and Finishes
RECEPTACLE: Nickel silver,
with 24 Kt gold plate

To Order:

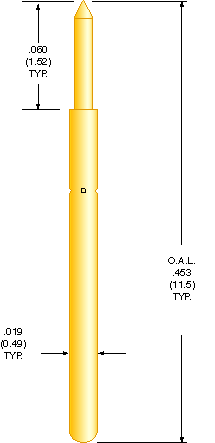

PROBE:
Select tip style as shown
RECEPTACLE:
Order Part number as shown

INSULATING SLEEVE FOR RECEPTACLE:
Order part number, R31/35SL
