QuickFix Parts List and Descriptions

PART NUMBER: DESCRIPTION:


QF4-RL-4 UNIVERSAL MODULAR RAIL SEGMENT
QF-910-9601 RETENTION MATERIAL BLACK
QF-PAS375-1 PRODUCT AREA SUPPORT QF/EC
QF4-ISP-187 INTERNAL SUPPORT POST
MFN0832016S00 60X21 NYLON SCREW FLAT HEAD
QF-LATCHFT LATCH-FOOT USED IN THE EC TOP FIXTURE
QF14X18 QUICKFIX KIT 14X18
QF14X18-EC EC QUICKFIX KIT 14X18
QF18X21 QUICKFIX KIT 18X21
QF18X21-EC  EC QUICKFIX KIT 18X21
QF18X24 QUICKFIX KIT 18X24
QF18X24-EC EC QUICKFIX KIT 18X24

QuickFix Descriptions


Typical modular rail segment used for all test machines.

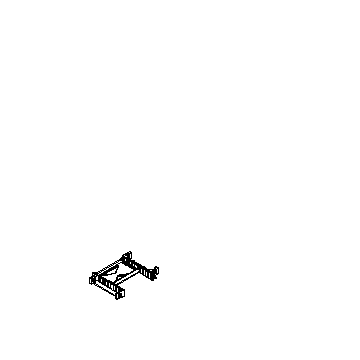

Standard fixture kit sizes are 14" X 18", 18" X 21", and 18" X 24". The QF4-RL-4 modular rail is designed to use the standard 8 plate stackup in chamfered edge slots.

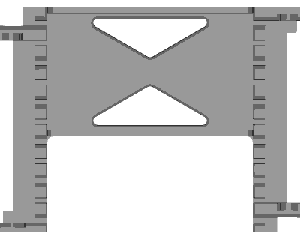

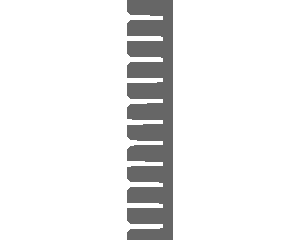

QF4-RL-4

 QF-PAS375

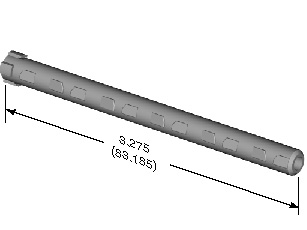

Universal Product Area Support
QF-PAS375-1

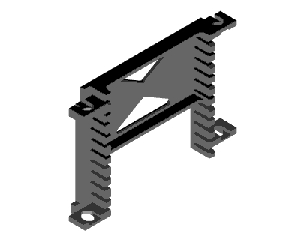

QuickFix modular rail
QF4-RL-4











Nylon Screw Standard Flat Head #8-32 x 1/2"
MFN0832016S00

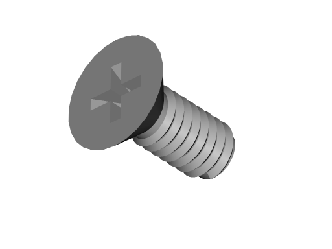

Nylon Screw Phillips Flat Head #8-32 x 1/2" Black
(use Phillips driver #2)
832 x 1/2 BLK

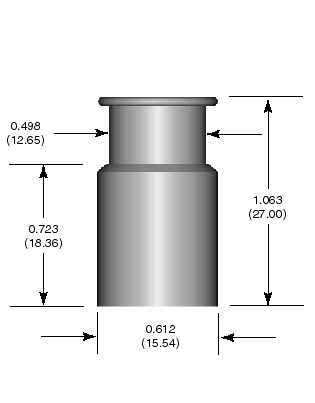

Latchfoot for EC Fixtures
QF-LATCHFT

 QF4-ISP-187









Internal Support Post
QF4-ISP-187



















Pin Retention Material (Black)
QF-910-9601
