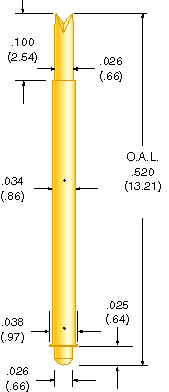

DOUBLE-ENDED BGA PROBE 127-1-034-520
.050 (1.27) PITCH/.050 (1.27) WORKING STROKE

Tool Bar

Probe Technical Data
Mechanical
MINIMUM CENTERS:
.050 (1.27)
FULL TRAVEL: .080 (2.03)
WORKING TRAVEL: .050 (1.27)
OPERATING LIFE: 100,000 cycles
RECOMMENDED DRILL SIZE #64- .0350/.0365 (.89/.93)

Electrical
MAXIMUM CURRENT:
3 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
35 m
OHMS mean

Material and Finishes
PLUNGER:
Heat treated beryllium copper
or steel hardened to 55 - 60RC, 24 Kt gold
plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: 24 Kt gold plated
Spring Force +/- 20% oz. (grams)

Spring Type

Preload

Working Travel

 -0
1.0 (28) 2.0 (56)

 -2

 .5 (14)

 1.0 (28)

 -3
.25 (7) .6 (17)



127-1-034-520
