BARE BOARD TEST PROBES

SERIES 32

.039 (0.99) CENTERS/.067 (1.70) STROKE

Tool Bar

Probe Technical Data
Mechanical
MINIMUM CENTERS:
.039 (.99)
FULL TRAVEL: .110 (2.80)
WORKING TRAVEL: .067 (1.70)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT:
3 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
40 m
OHMS mean

Material and Finishes
PLUNGER:
Heat treated beryllium copper
24 Kt gold plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: Music wire
Spring Force +/- 20% oz. (grams)

Spring Type

Preload

@ 2/3 Travel

Standard

.56 (15.7)

1.64 (46.1)








Receptacle Technical Data

The top of the barrel sets flush with the top of the receptacle.
MOUNTING HOLE SIZE: .028/.0295
(.71/.75) diameter
WIRE GAUGE: 30 AWG
CONNECTIONS:
R32-1
Crimp

Materials and Finishes
RECEPTACLE
:
Nickel silver with 24 Kt gold plate

To Order
PROBE
:
Select tip style as shown

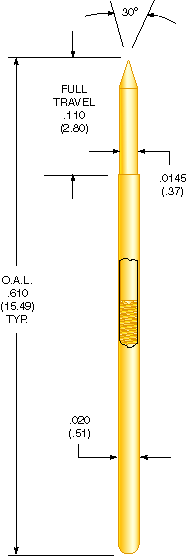

EXAMPLE: 32 -B is a spear style
tip with a 1.64 oz. spring
RECEPTACLE:
Order Part number as shown
