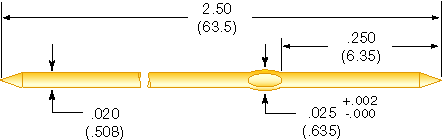

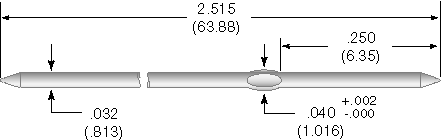

SERIES 97D

 Translation pins are used in bare board test systems to minimize the dedicated test fixture cost and to facilitate testing of bare PC boards not laid out on a standard .100 x .100 grid pattern. Test Connections offers pins of several sizes and materials with a number of tip configurations. Custom designs can also be supplied.

MATERIAL:

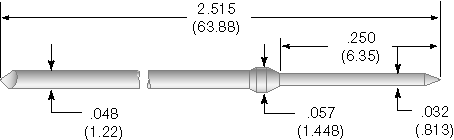

Hardened Beryllium Copper, for P/N 97D-T48, others music wire.

PLATING:
Standard, Gold Plated.
